Designed for curing lightweight coatings and inks on narrow webs

Our Core 100 can accommodate virtually any flexible packaging handled by the HP Indigo 20000 press. With a top speed of up to 600 fpm, it can keep up with multiple presses. With numerous options for overprint varnish (OPV) finishes, you can choose the best effect to make your packaging stand out on any shelf. Best of all, ebeam’s instant-curing process means you can turn around orders in an instant!

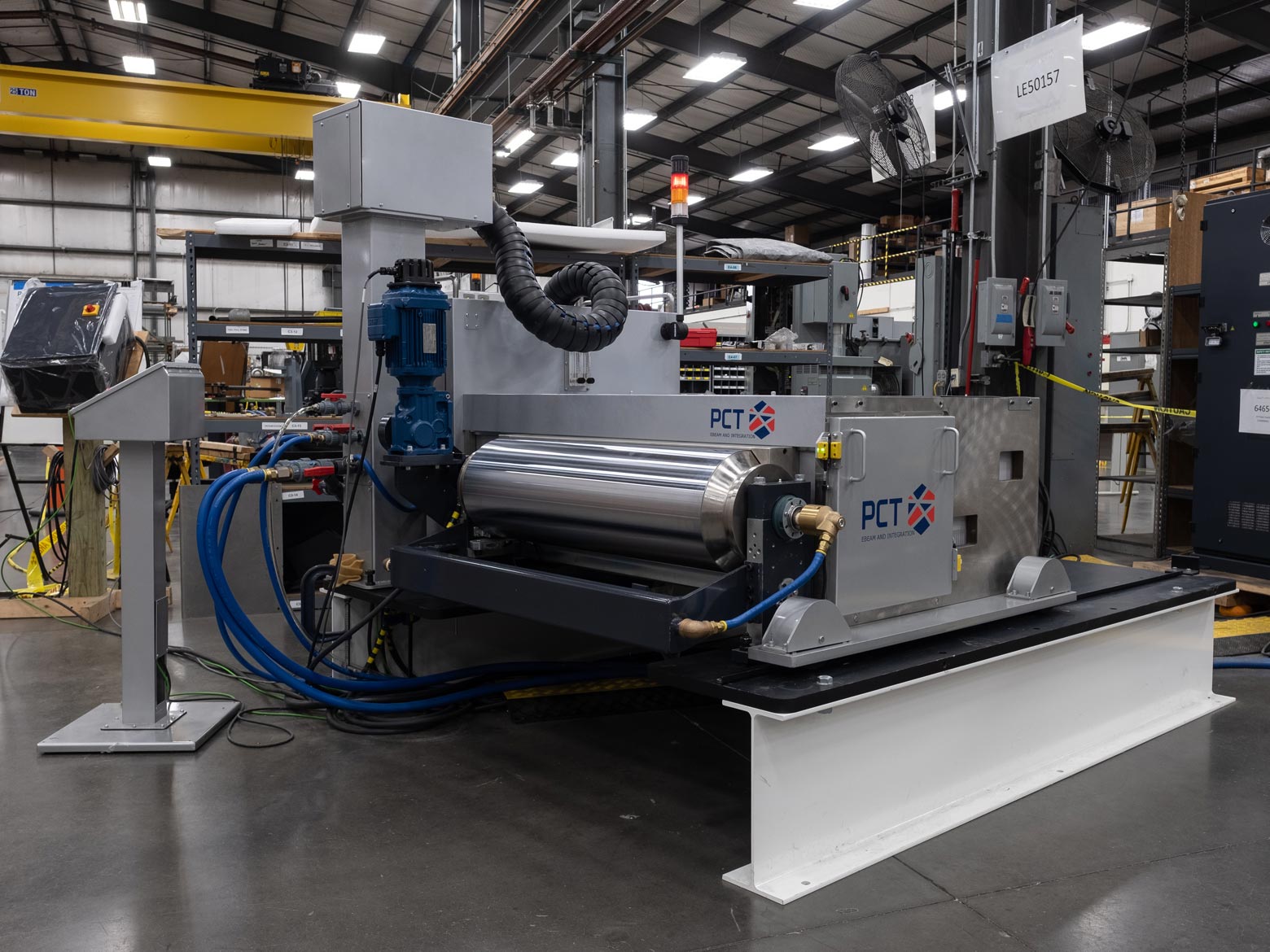

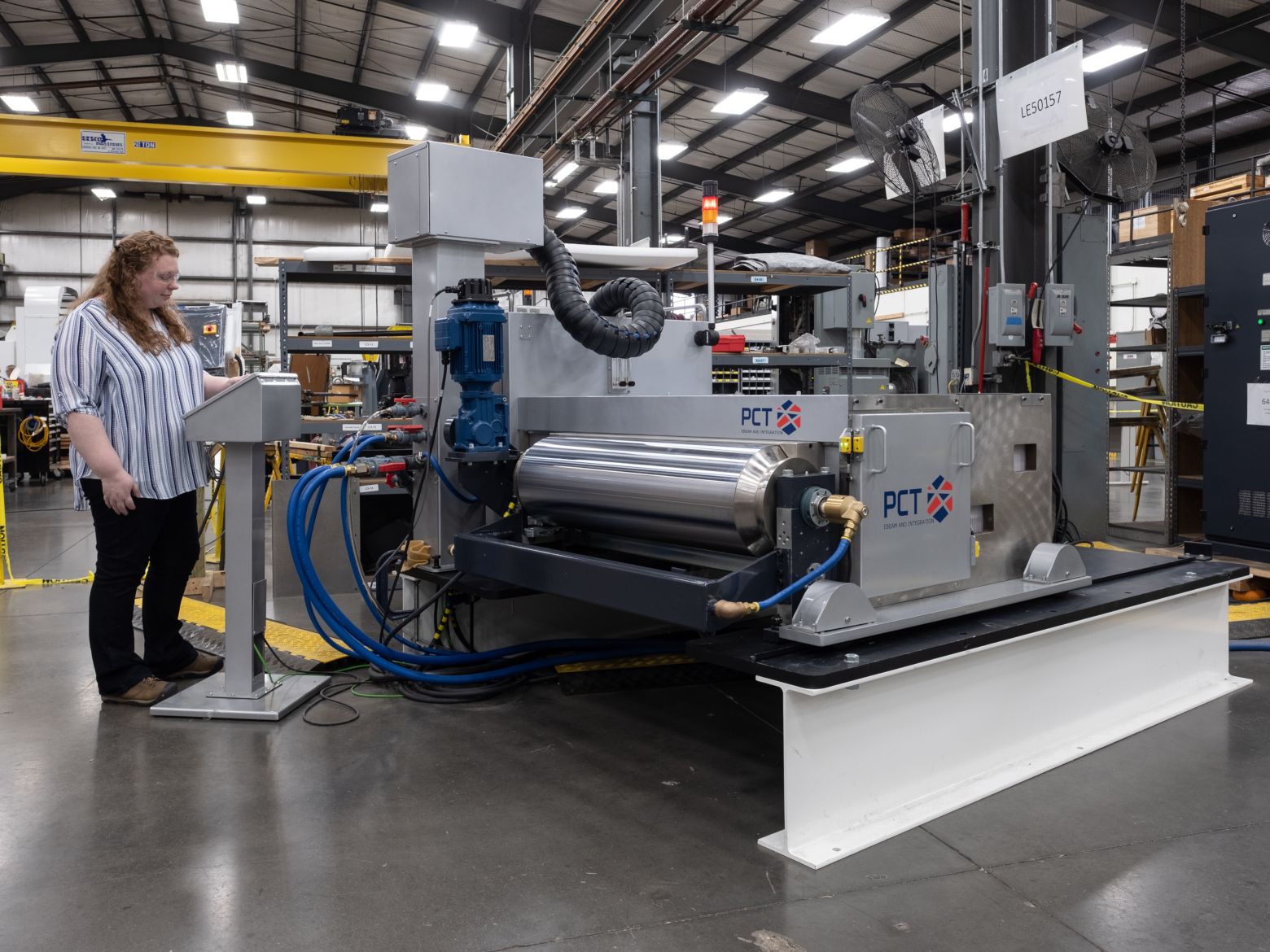

Core 100
wdt_ID Technical Specifications Values
1 Accelerating Voltage 80 to 100 kV
2 Maximum Uniform Beam Width 30 in
[760 mm]
4 Maximum Production Speed 600 ft/min
[183 m/min]
6 Maximum Surface Dose Rate for 100 kV 3 Mrad @ 600 ft/min
[30 kGy @ 183 m/min]
8 Cross-web Uniformity ≤ ±8.0% variation
9 Nitrogen Inerting Level ≤ 200 ppm O2
10 Product Clearance 0.050 in
[1.25 mm]

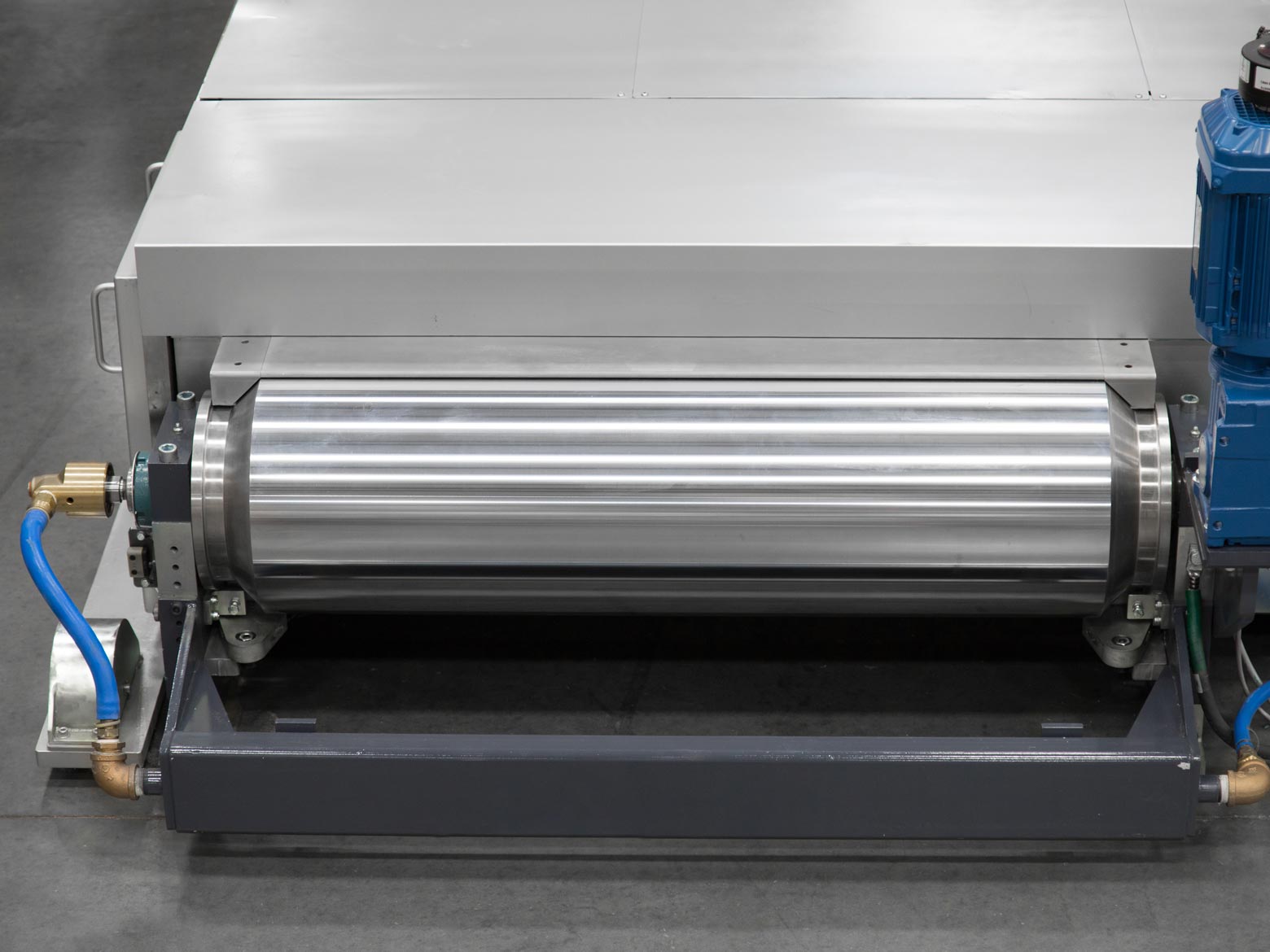

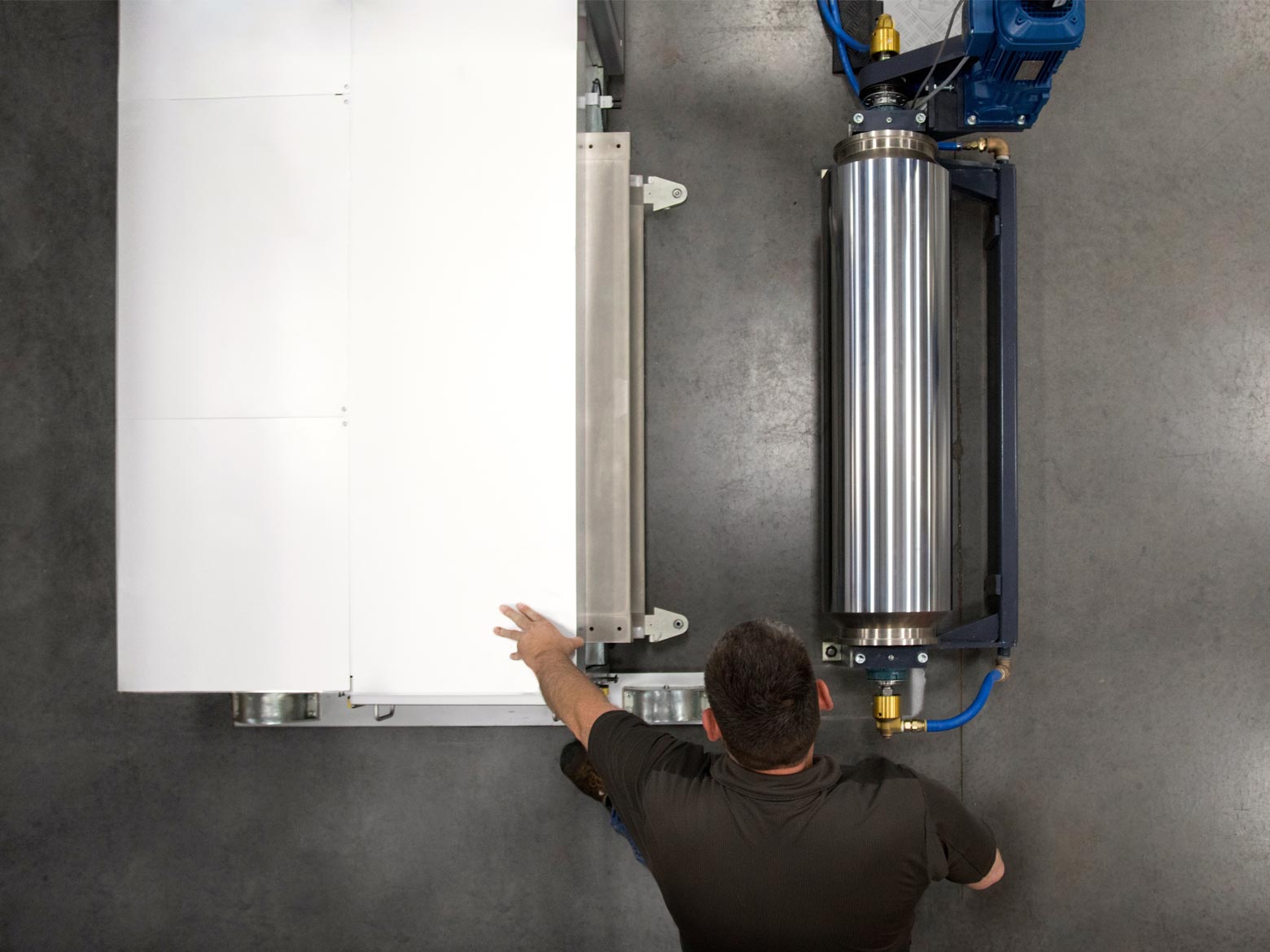

12 Web Support Patented integrated shield roll
13 Dimensions (H x W x D) 40 x 100 x 59 in
[100 x 255 x 149 cm]
15 Facility Requirements Electricity, cooling water, and nitrogen
