Lab-scale equipment for the development of ebeam applications.

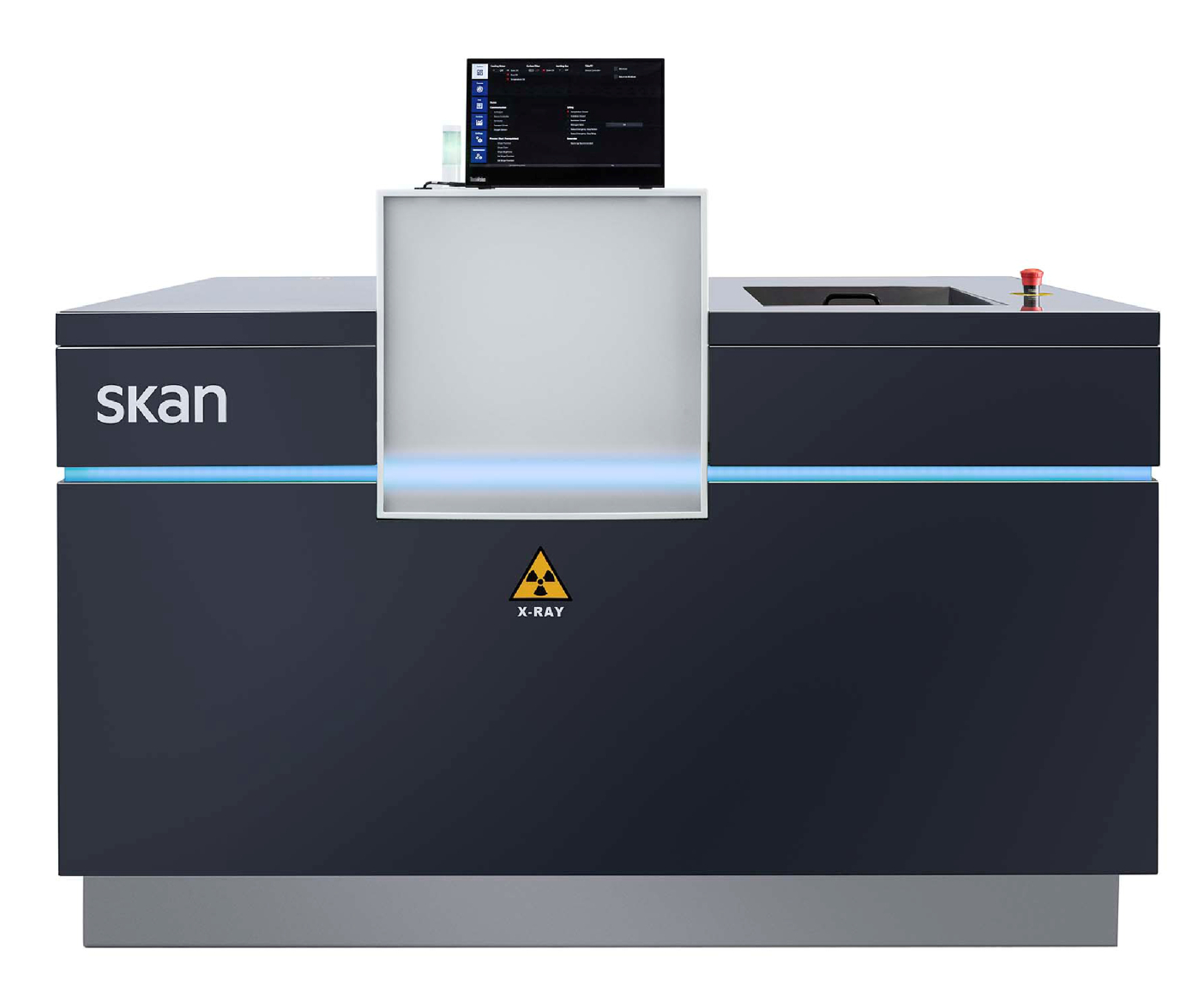

PCT is the North American distributor of the Skan EBLab200 system. Whether for a research institution or for industrial development, the compact and easy-to-use EBLab is a helpful tool.
| order | wdt_ID | Technical Specifications | Values |
|---|---|---|---|
| 1 | 1 | Accelerating Voltage | 80 to 200 kV |
| 10 | 2 | Weight | 2,870 lb [1,300 kg] |
| 3 | 4 | Speed | 10 to 100 ft/min [3 to 30 m/min] |
| 2 | 6 | Maximum Power | 3 kW |
| 4 | 8 | Sample Size | Up to 8.2 x 11.6 in [210 x 295 mm] |
| 7 | 9 | Nitrogen Inerting Level | ≤ 200 ppm O2 |
| 6 | 10 | Adjustable Air Gap | 0.2 to 2 in [5 to 50 mm] |
| 5 | 12 | Sample Support | Removable tray |
| 9 | 13 | Dimensions (H x W x D) | 58 x 67 x 39 in [147 x 170 x 98 cm] |
| 8 | 15 | Facility Requirements | Electricity, cooling water, and nitrogen |
| 11 | 16 | Noise Level | < 70.0 dB(A) |
