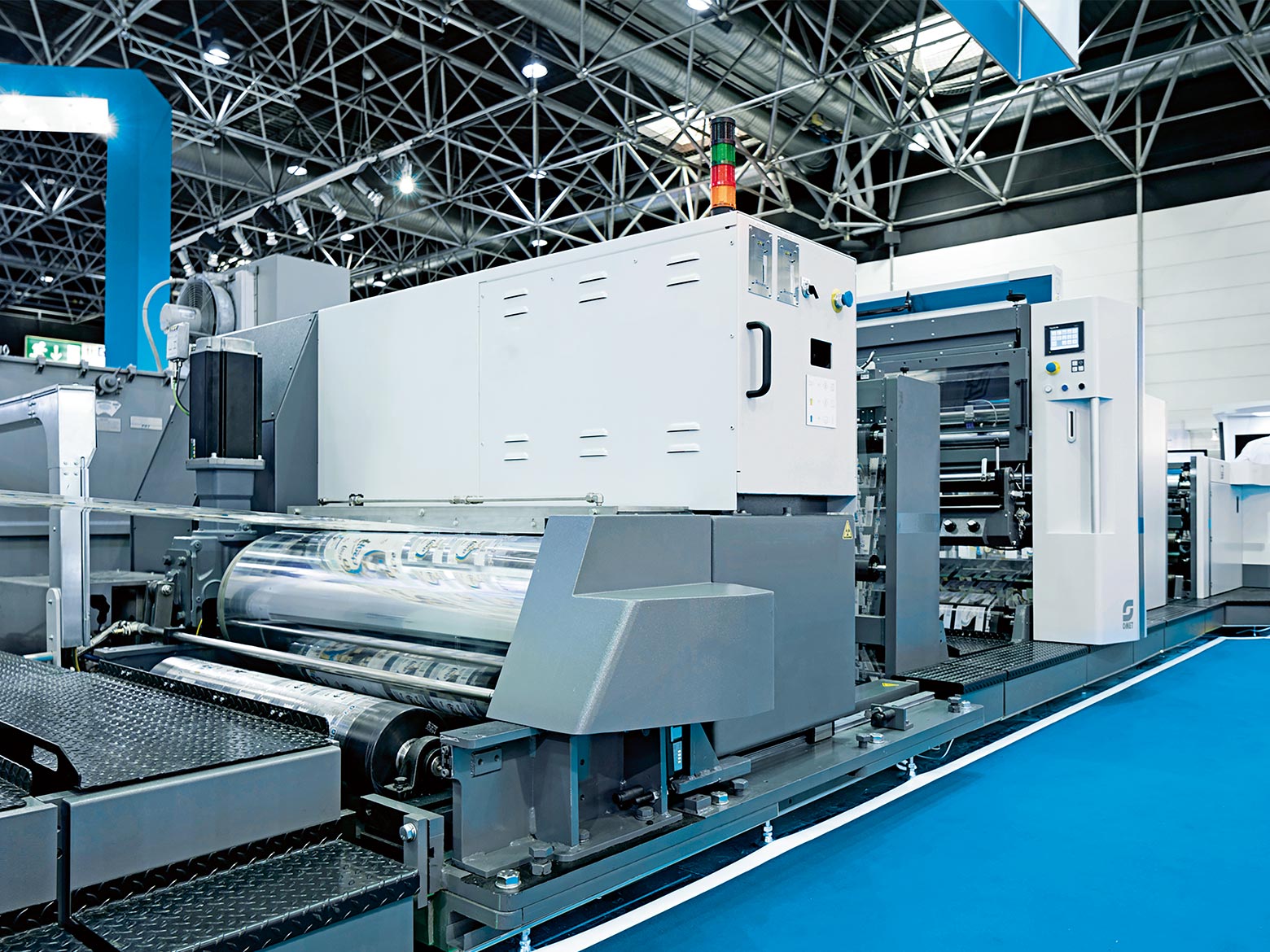

Interested in the sustainability and flexibility of using ebeam-cured inks or coatings? What about in-line curing of laminates or coil coating? There is an Omnia system ready to work for you. Our patented integrated shield roll design provides the advantages of a chill roll without compromising ease of use. With innovative design and dependable operation, Omnia delivers efficiency and reliability for every job.
| wdt_ID | Technical Specifications | Values |
|---|---|---|
| 1 | Accelerating Voltage | 80 to 150 kV |
| 2 | Uniform Beam Width | 36 to 108 in [910 to 2,740 mm] |
| 4 | Maximum Production Speed | 1,300 ft/min [400 m/min] |
| 6 | Maximum Surface Dose Rate [Model and Voltage Dependent] |
3 Mrad @ 1,300 ft/min [30 kGy @ 400 m/min] |
| 8 | Cross-web Uniformity | ≤ ±8.0% variation |
| 9 | Nitrogen Inerting Level | ≤ 200 ppm O2 |
| 10 | Product Clearance | 0.059 in [1.50 mm] |
| 12 | Web Support | Patented integrated shield roll |
| 13 | Dimensions (H x W x D) [36 in Beam Width] |
53 x 105 x 83 in [135 x 266 x 210 cm] |
| 15 | Facility Requirements | Electricity, cooling water, and nitrogen |
| 16 | Noise Level | < 70.0 dB(A) |
