Exceeding what was possible for low-energy x-ray

Make room for eXede, the next generation of low-energy, high-power (L.E.H.P.) x-ray technology! Delivering up to 600 kW of in-line, in-house process power, eXede brings capabilities never before available in a single system.

Its patented design is based on PCT’s proven foundation of rugged, industrial equipment. It is field-serviceable and is backed by PCT’s experienced service staff. Whether your process includes boxes, bags, bottles, cannisters, pipes, totes, trays, tubs or just about any material handling configuration, PCT can integrate it with eXede.

Our mechanical and electrical engineers excel at providing customized solutions tailored to each customer’s unique process requirements, ensuring seamless integration and reliable operation.

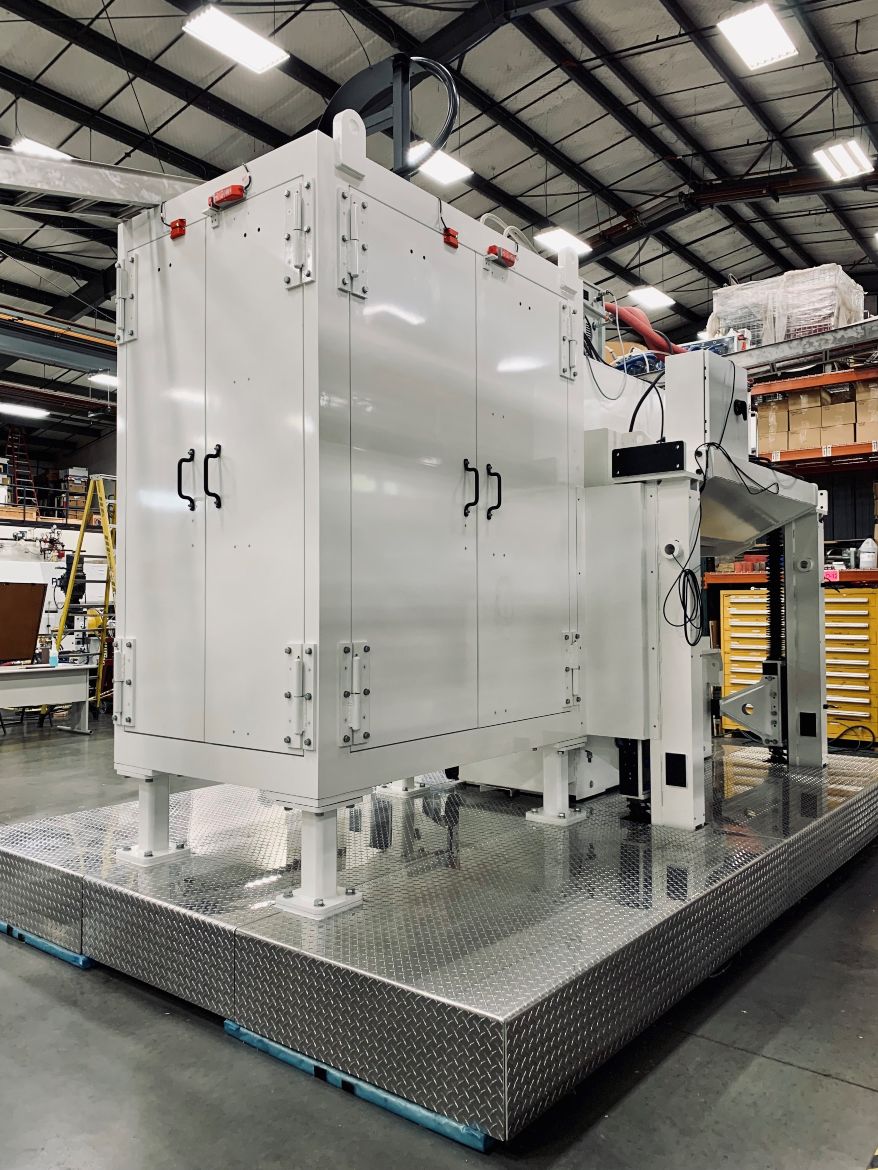

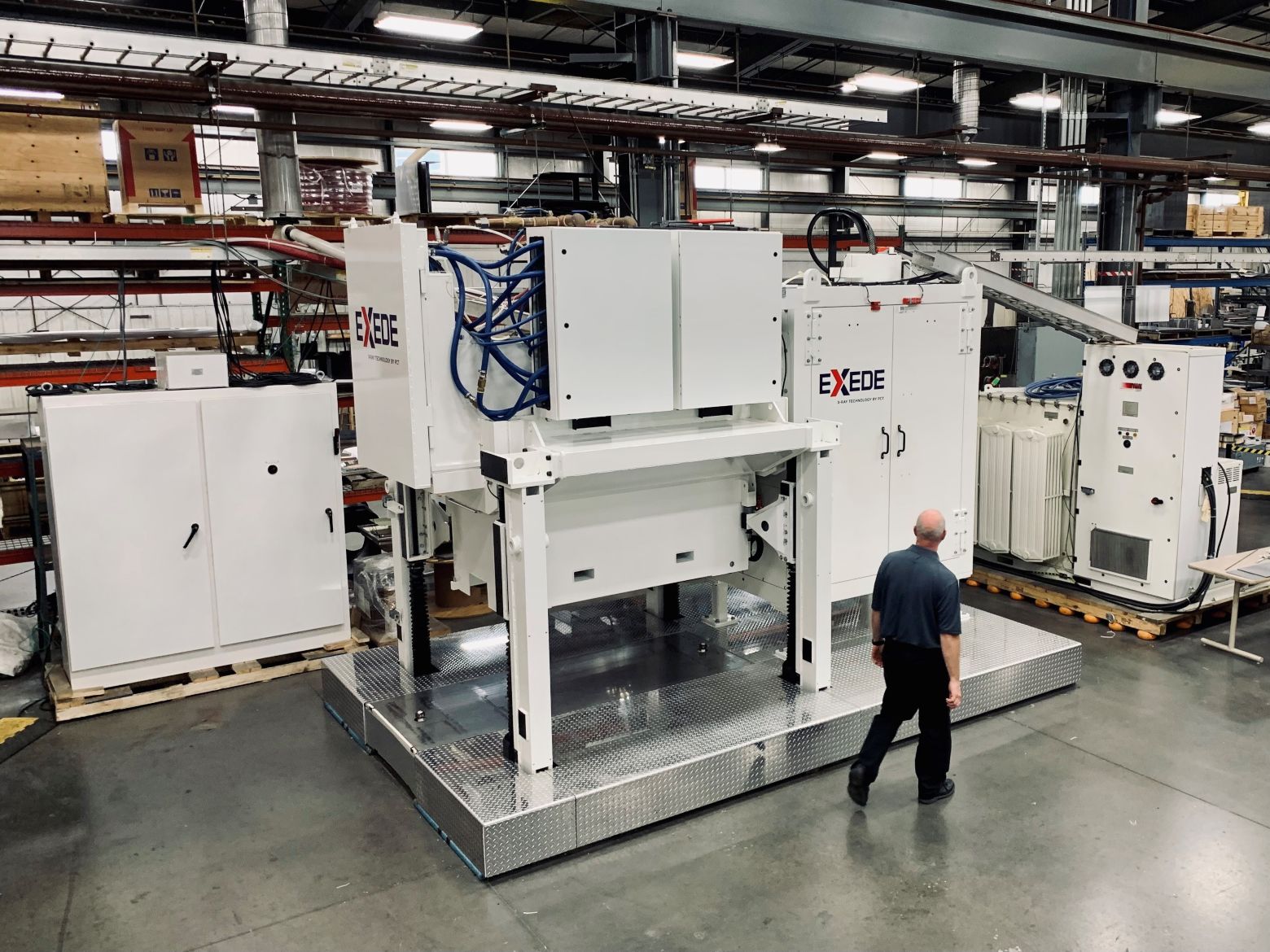

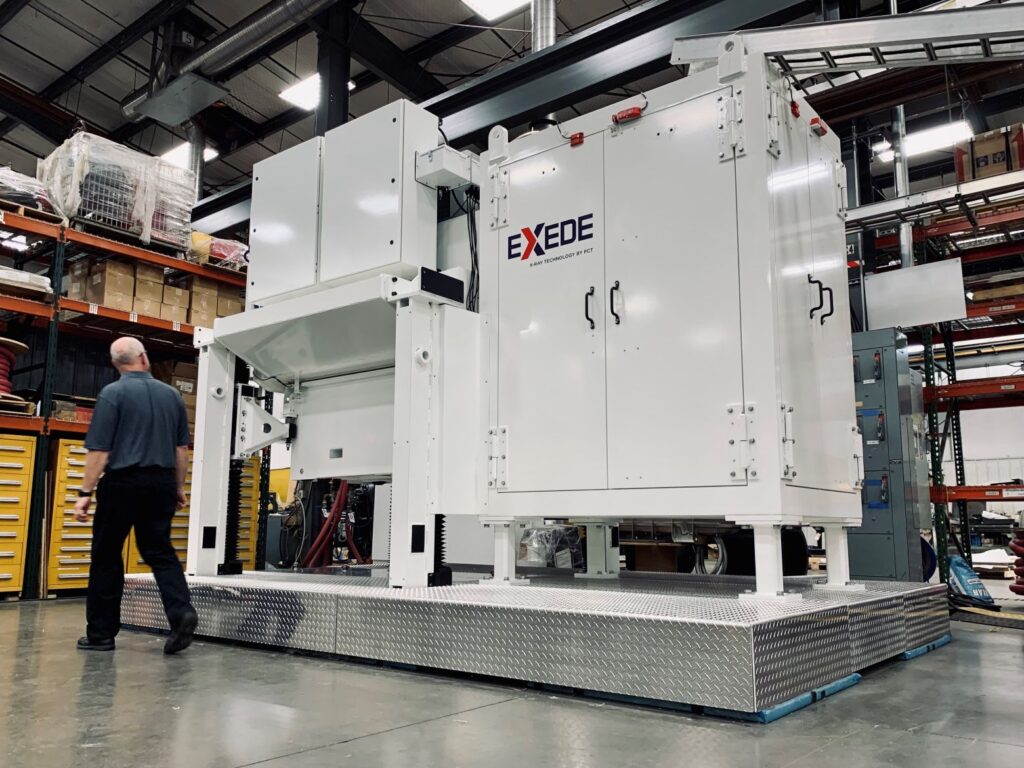

eXede X-ray Systems and Solutions

Technical specifications

wdt_ID Technical Specifications Values
1 Rated Power Output up to 600 kW

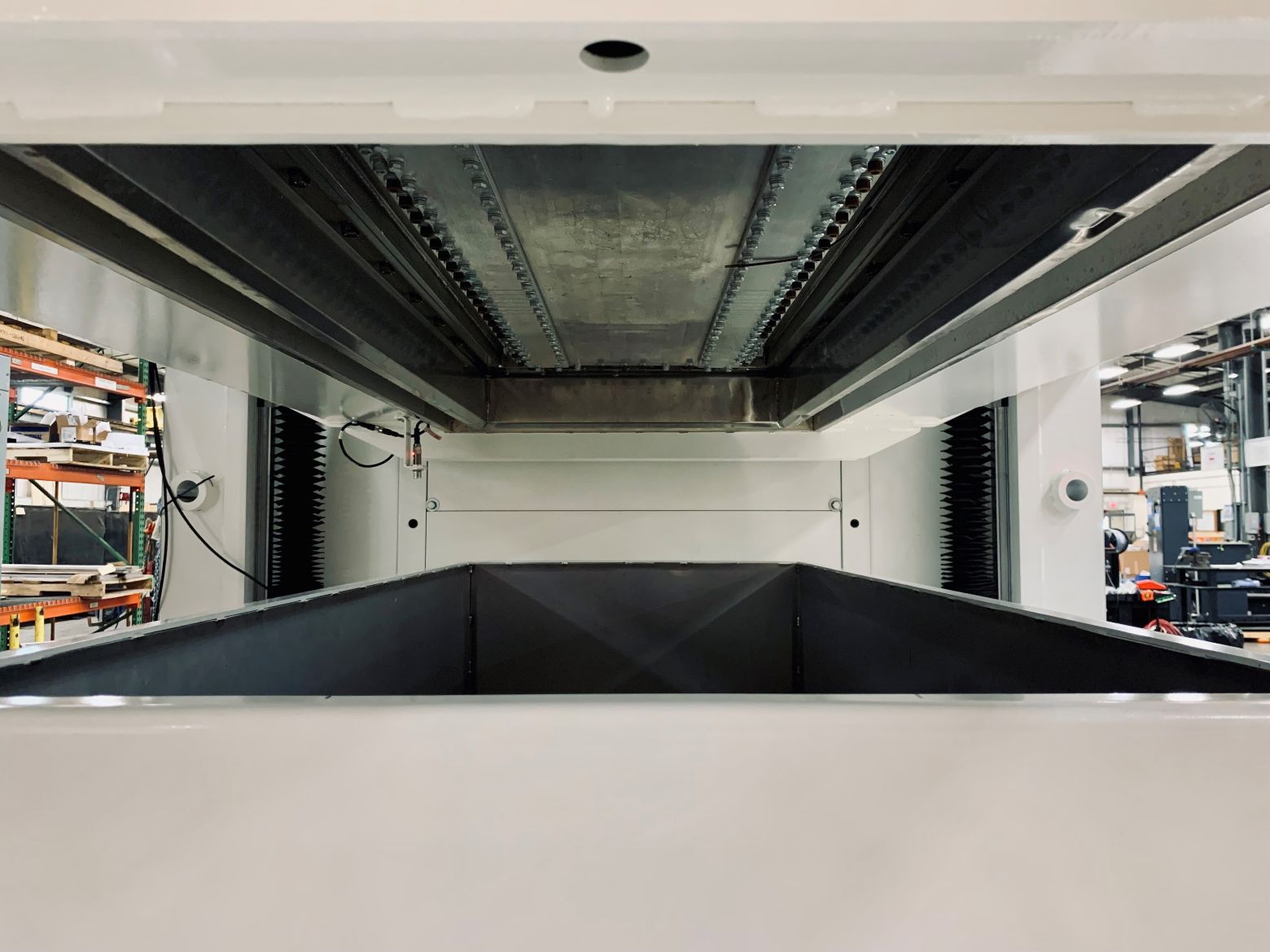

2 Exposure Area Up to 96 in x 12 in (8 sq. ft)
[2,440 mm x 305 mm (0.74 sq. m)]
6 Avg. Dose Rate over Exposure Area
[Model Dependent]
Up to 600 Gy/min avg. over top surface
Up to 240 Gy/min avg. below 2 in [50 mm] of water

Note: Actual dose to product depends on presentation, density, accelerating voltage, and dwell time
10 Product Handling Customizable
13 Dimensions (H x W x D)
[47 in Target Width, excluding custom product handling]
145 x 185 x 170 in
[370 x 470 x 430 cm]
15 Facility Requirements Electricity, cooling water, and compressed air
16 Noise Level < 70.0 dB(A)
