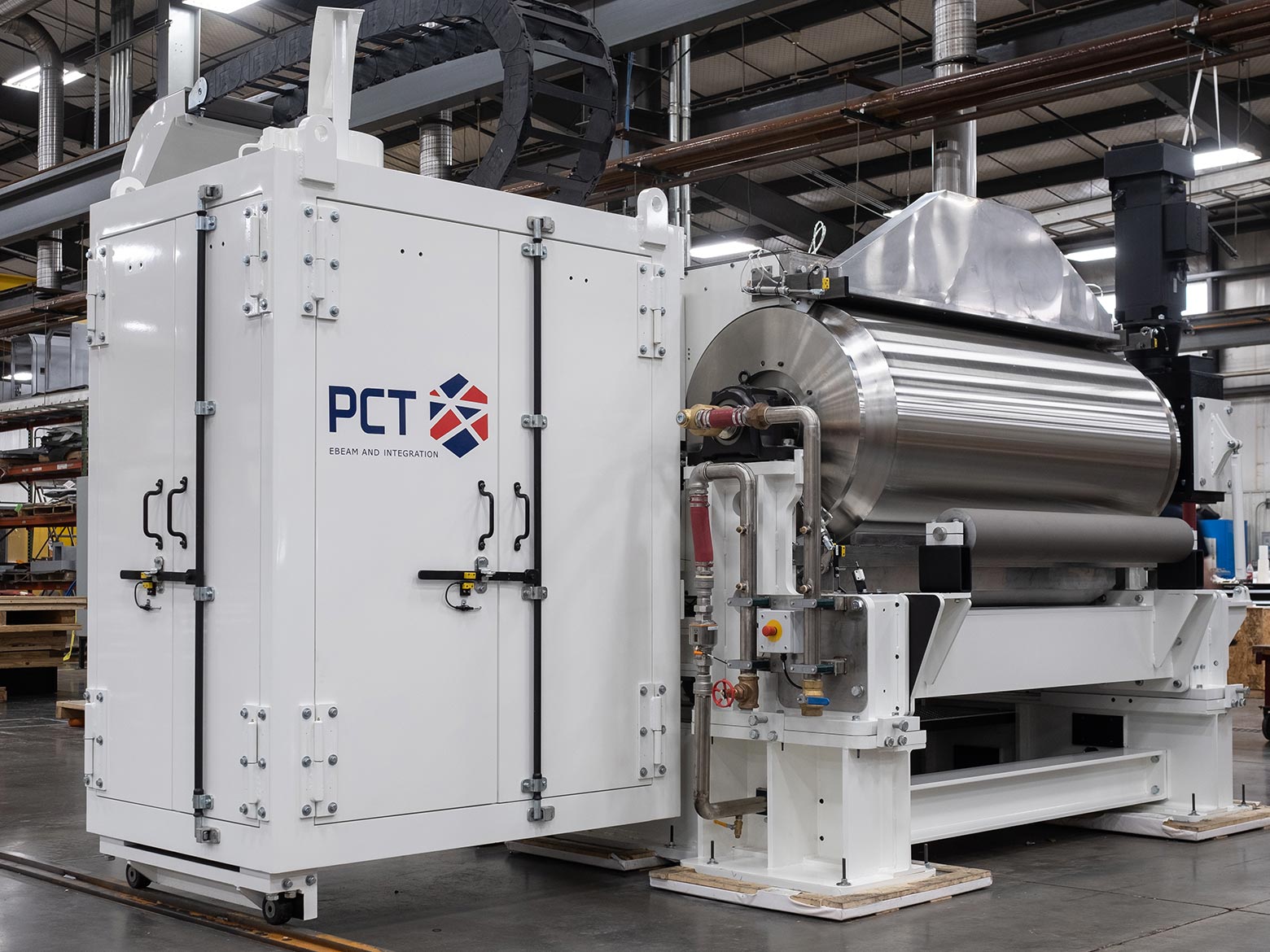

With accelerating voltages of up to 300 kV, Invictus systems are built to tackle the most demanding applications. Whether you need to crosslink multi-layer films, cure thick opaque coatings, or process PSAs, Invictus delivers proven, reliable performance every time.
| wdt_ID | Technical Specifications | Values |
|---|---|---|
| 1 | Accelerating Voltage | 80 to 300 kV |
| 2 | Uniform Beam Width | 47 to 91 in [1,194 to 2,320 mm] |
| 4 | Maximum Production Speed | 1,300 ft/min [400 m/min] |
| 6 | Maximum Surface Dose Rate [Model and Voltage Dependent] |
3 Mrad @ 1,300 ft/min [30 kGy @ 400 m/min] |
| 8 | Cross-web Uniformity | ≤ ±8.0% variation |
| 9 | Nitrogen Inerting Level | ≤ 200 ppm O2 |
| 10 | Product Clearance | 0.125 in [3 mm] |
| 12 | Web Support | Patented integrated shield roll |
| 13 | Dimensions (H x W x D) [47 in Beam Width] |
145 x 185 x 170 in [370 x 470 x 430 cm] |
| 15 | Facility Requirements | Electricity, cooling water, and nitrogen |
| 16 | Noise Level | < 70.0 dB(A) |
